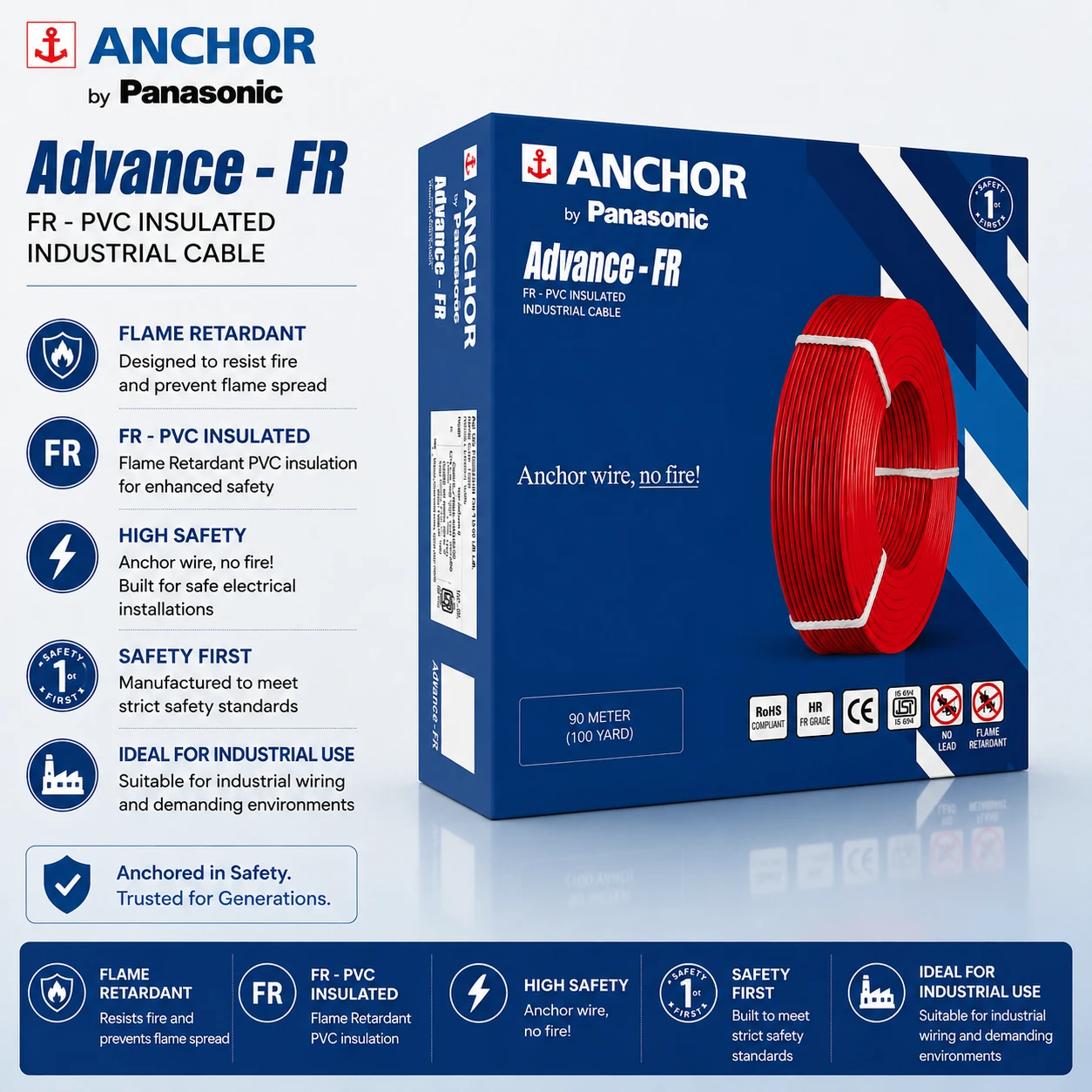

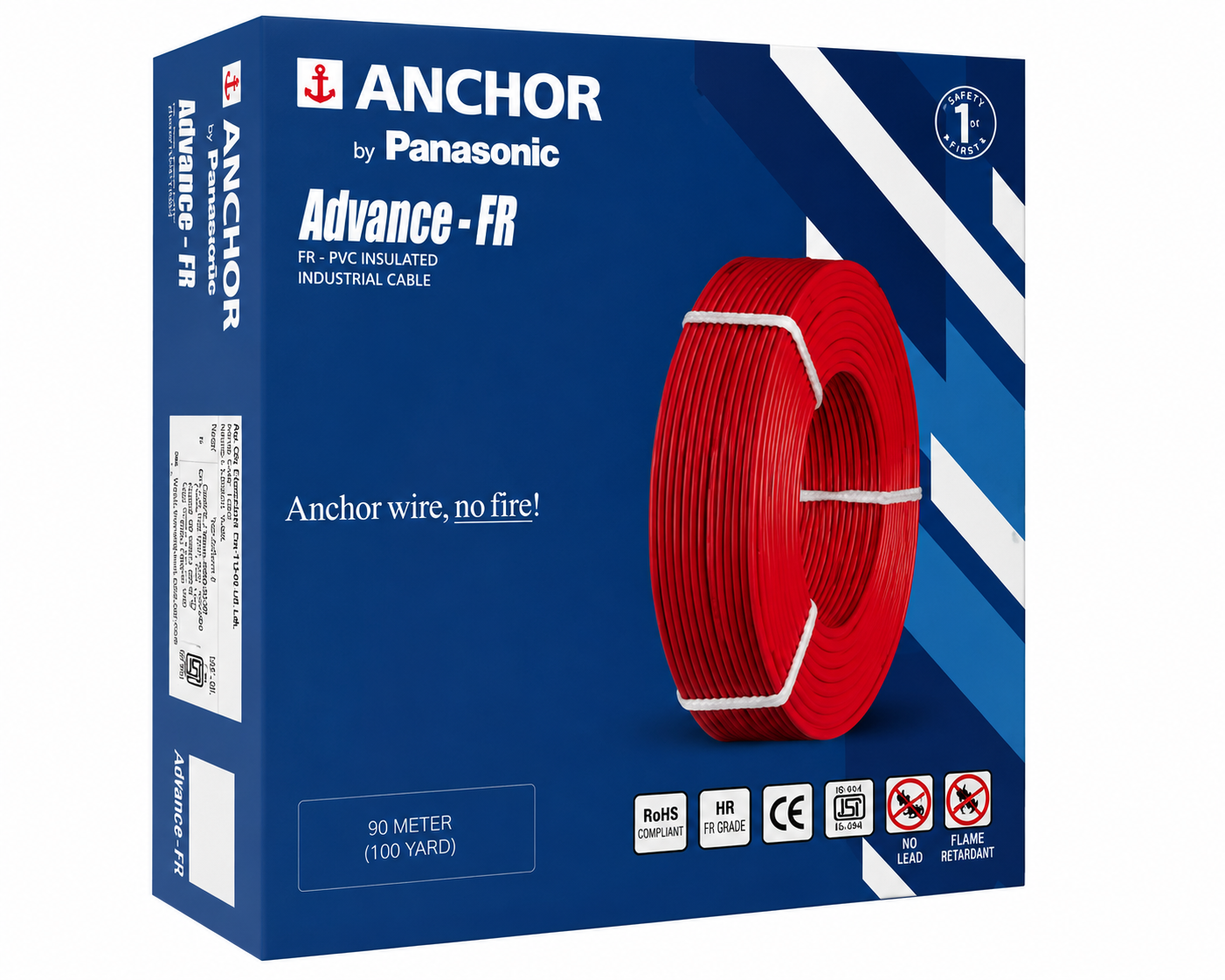

Anchor Advance FR wire 90 metre
Product Highlights
Flame-Retardant Wiring for Everyday Electrical Installations
Anchor by Panasonic Advance FR Wire is a flame-retardant building wire designed for residential, commercial and infrastructure electrical installations. It conforms to IS 694:2010 and is rated for 1100 V (1.1 kV). The wire uses 99.97% pure electrolytic tough-pitch-grade copper with FR insulation, supporting efficient current flow while helping resist flame propagation in suitable concealed and open wiring applications.
Details
Dependable Building Wire with Flame-Retardant Protection
Anchor by Panasonic Advance FR Wire is designed for electrical wiring in residential, commercial and infrastructure projects. Manufactured as part of Anchor's building-wire range, Advance FR combines high-purity copper with specially formulated flame-retardant PVC insulation for dependable current transmission and improved fire performance.
The wire conforms to IS 694:2010 and carries an 1100 V (1.1 kV) voltage rating. Its conductor is made using electrolytic tough-pitch-grade copper with 99.97% purity, while the manufacturer specifies 101% conductivity and enhanced annealing for flexibility.
This listing is intended as a general 90 metre Advance FR wire product page. Wire size and colour should be selected according to the electrical circuit and installation requirement.
Designed for Building Electrical Wiring
Advance FR is part of Anchor by Panasonic's building-wire range for carrying electrical current through mains, sub-mains and power-point circuits. The manufacturer states that building wires are used across residential, commercial and infrastructure construction and can be installed in suitable concealed or open wiring applications.
Flame-Retardant Insulation
Specially formulated FR PVC insulation is designed to resist flame propagation and has a higher oxygen index and temperature index than normal PVC.
99.97% Pure Copper
The conductor uses electrolytic tough-pitch-grade copper with 99.97% purity for efficient electrical conductivity.
1100 V Grade
Advance FR is specified as a 1100 V, or 1.1 kV, building wire for suitable electrical installations.
Enhanced Flexibility
The manufacturer specifies 60% extra annealing and 100% bunching to support flexibility during handling and installation.
High-Purity Copper Conductor
The conductor is a critical part of any electrical wire because it carries current through the circuit. Anchor by Panasonic specifies 100% electrolytic tough-pitch-grade copper with 99.97% purity for Advance FR.
The company also states 101% conductivity for the series. High-conductivity copper supports efficient current transmission and helps reduce unnecessary electrical resistance when the correct wire size is selected for the circuit.
FR Insulation for Improved Fire Performance
Advance FR uses specially formulated flame-retardant PVC insulation. According to Anchor by Panasonic, the formulation provides a higher oxygen index and temperature index than normal PVC and is designed so that flame-retardant properties do not allow fire to propagate along the wire.
FR wire should still be selected, sized and installed correctly as part of a properly designed electrical system. The wire size required depends on the intended load and circuit.
Additional Protection Features
Anchor by Panasonic specifies several additional characteristics for the Advance FR series that support practical building-wire applications.
- High Insulation Resistance: Advance FR is specified as High Insulation Resistant (HIR).
- Anti-Rodent: The manufacturer specifies anti-rodent ingredients in the insulation formulation.
- Anti-Termite: The series is specified with anti-termite characteristics.
- RoHS & REACH Compliance: Advance FR is stated as compliant with RoHS and REACH requirements.
- Flexible Construction: 60% extra annealing is specified to enhance flexibility.
Conforms to IS 694:2010
Advance FR conforms to IS 694:2010, the applicable Indian standard cited by the manufacturer for this building-wire series. The product is also specified with CE certification and an S Mark from STQC Lab, Department of Telecommunications, Government of India.

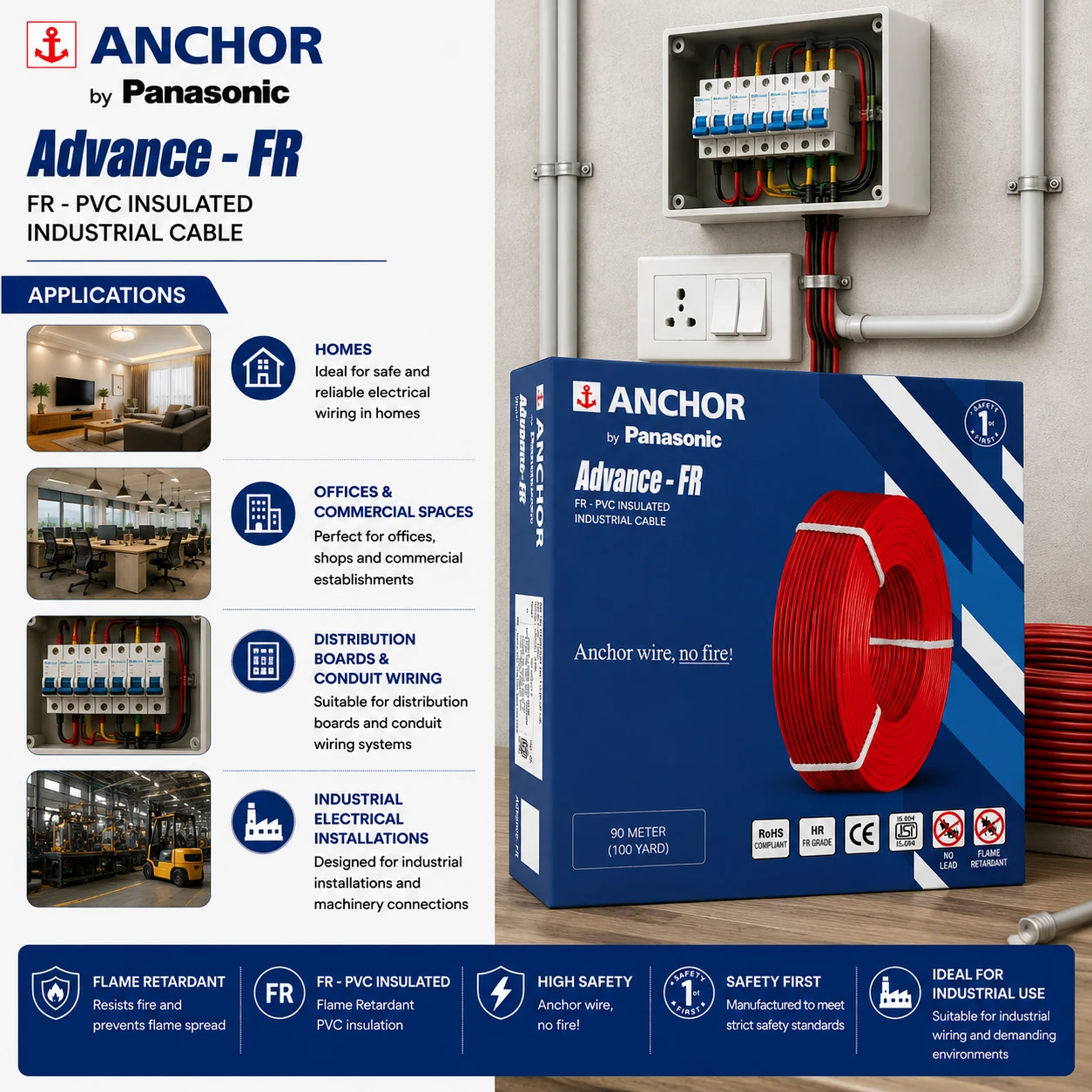

Suitable Applications
Anchor building wires are intended for electrical installations across residential, commercial and infrastructure projects. Typical building-wire applications include routing current from switchboards to lighting points, fans and other compatible electrical circuits.
The correct conductor size must be selected based on the electrical load, circuit design and installation conditions. For a general 90 metre listing, the size and colour should therefore remain selectable or be clearly specified at the variant level.
Key Features
- Anchor by Panasonic Advance FR building wire
- Flame-retardant PVC insulation
- Conforms to IS 694:2010
- 1100 V / 1.1 kV voltage grade
- 99.97% pure electrolytic tough-pitch-grade copper
- 101% conductivity as specified by the manufacturer
- Higher oxygen index and temperature index than normal PVC
- 100% bunching
- 60% extra annealing for enhanced flexibility
- High Insulation Resistant (HIR)
- Anti-rodent ingredients
- Anti-termite properties
- RoHS & REACH compliant
- CE certified
- S Mark from STQC Lab
- Suitable for building electrical wiring applications
Practical Wiring for Homes and Buildings
Anchor by Panasonic Advance FR combines high-purity copper, flame-retardant insulation and an 1100 V rating in a building-wire range designed for modern electrical installations. Its IS 694:2010 conformity, enhanced flexibility and additional insulation-protection features make it a practical option when the correct conductor size is chosen for the circuit.
Choose the appropriate wire size and colour according to your electrical requirement.

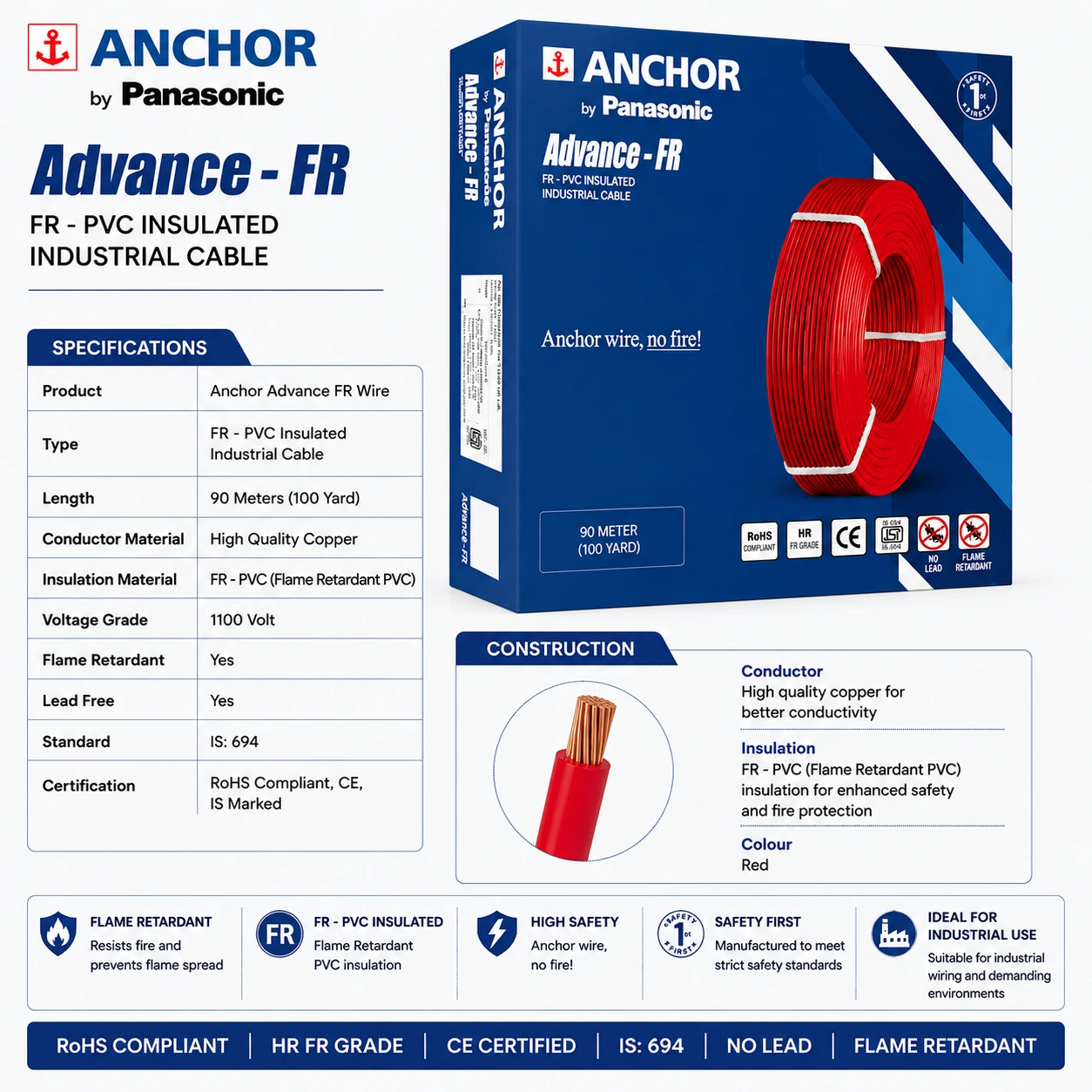

| Specification | Details |
| Brand | Anchor by Panasonic |
| Series | Advance FR |
| Product Type | Flame Retardant Building Wire |
| Length | 90 Metres |
| Voltage Grade | 1100 V / 1.1 kV |
| Conductor Material | Electrolytic Tough-Pitch-Grade Copper |
| Copper Purity | 99.97% |
| Conductivity | 101% |
| Insulation | Flame-Retardant PVC |
| Standard | IS 694:2010 |
| Bunching | 100% |
| Annealing | 60% Extra Annealing for Enhanced Flexibility |
| Insulation Resistance | High Insulation Resistant (HIR) |
| Protection Features | Anti-Rodent Ingredients and Anti-Termite |
| Compliance | RoHS & REACH Compliant |
| Certifications / Marks | CE Certified; S Mark from STQC Lab |
| Wire Size | Variant Dependent |
| Colour | Variant Dependent |
