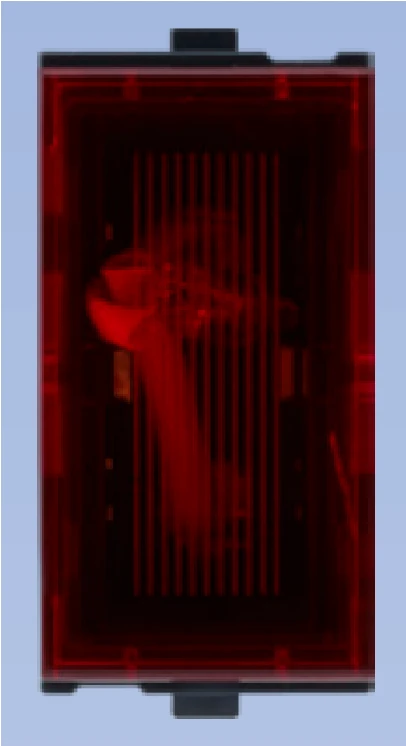

Anchor Penta Modular Neon Indicator Grey | 220V Signal Indicator for Switchboard Safety
Product Highlights
Low-Smoke FR-LSH Wiring for Safer Electrical Installations
Anchor by Panasonic Fireguard FR-LSH Wire is a flame-retardant low-smoke halogen building wire designed for residential, commercial and infrastructure electrical installations. It conforms to IS 694:2010 and uses 99.97% pure electrolytic tough-pitch-grade copper with Class 5 conductors. Its FR-LSH insulation is designed for improved fire performance while producing substantially less smoke than comparable wires.
Details
Flame-Retardant Wiring with Lower Smoke Emission
Anchor by Panasonic Fireguard FR-LSH Wire is a flame-retardant low-smoke halogen building wire developed for electrical installations where improved fire performance and reduced smoke generation are important considerations.
Fireguard FR-LSH uses 99.97% pure electrolytic tough-pitch-grade copper and Class 5 conductors. Anchor by Panasonic specifies 101% conductivity, 100% bunching and 60% extra annealing to support efficient current transmission and enhanced conductor flexibility.
The FR-LSH insulation features a higher oxygen index and temperature index for improved fire performance. According to the manufacturer, Fireguard FR-LSH emits at least 50% less smoke than comparable wires, along with a lower amount of corrosive halogen acid and toxic gases.
Designed for Improved Fire Performance
Smoke and corrosive gases can become an important consideration during a fire. Fireguard FR-LSH is designed around flame-retardant low-smoke halogen insulation to provide enhanced performance compared with conventional wiring.
Anchor by Panasonic specifies a higher oxygen index and temperature index for the series. A higher oxygen index indicates greater resistance to combustion, supporting the wire's intended use in suitable building electrical installations where fire-performance characteristics are important.
FR-LSH Insulation
Flame-retardant low-smoke halogen insulation is designed to improve fire performance while reducing smoke generation.
At Least 50% Less Smoke
Anchor by Panasonic states that Fireguard FR-LSH emits at least 50% less smoke than comparable wires.
99.97% Pure Copper
The conductor uses electrolytic tough-pitch-grade copper with 99.97% purity for dependable conductivity.
Class 5 Conductors
Class 5 conductor construction, together with extra annealing, supports flexibility during handling and installation.
High-Purity Copper at the Core
Fireguard FR-LSH uses 100% electrolytic tough-pitch-grade copper with 99.97% purity. The manufacturer specifies 101% conductivity for the series, supporting efficient current flow when the correct wire size is selected for the intended electrical circuit.
The conductor is also manufactured with 100% bunching, while 60% extra annealing is specified to enhance flexibility.
Class 5 Flexible Conductor Construction
Anchor by Panasonic specifies Class 5 conductors for Fireguard FR-LSH. Class 5 construction is associated with flexible stranded conductors, making the wire practical for routing through suitable conduits and building wiring installations.
The combination of Class 5 conductor construction and additional annealing helps make the wire easier to handle during installation while retaining the electrical characteristics specified for the series.
Lower Smoke and Halogen Emission
One of the distinguishing characteristics of Fireguard FR-LSH is its low-smoke halogen formulation. Anchor by Panasonic states that the wire produces at least 50% less smoke than comparable wires.
The manufacturer also specifies a lower quantity of corrosive halogen acid and toxic gases. These properties are particularly relevant when selecting wiring for buildings where smoke generation during a fire is an important design consideration.
Conforms to IS 694:2010
Anchor by Panasonic specifies that Fireguard FR-LSH conforms to IS 694:2010. This provides a clear reference standard for the construction and performance requirements applicable to the building-wire series.
Correct conductor size should always be selected according to the circuit load and electrical design. The manufacturer offers building wires across multiple conductor sizes, so the exact size must be specified at the product-variant level.
Suitable for Building Wiring Applications
Anchor building wires are intended for residential, commercial and infrastructure construction. They are used for carrying electricity between distribution points and electrical installations such as lighting, fans and other compatible circuits.
Building wires may be used in concealed and suitable open-wiring applications. Selection of conductor size, circuit protection and installation method should be based on the electrical load and professional electrical design requirements.
Key Features
- Anchor by Panasonic Fireguard FR-LSH building wire
- Flame-retardant low-smoke halogen insulation
- Conforms to IS 694:2010
- Higher oxygen index and temperature index
- At least 50% less smoke than comparable wires, as stated by the manufacturer
- Reduced corrosive halogen acid and toxic gas emission compared with conventional alternatives, as stated by the manufacturer
- 100% electrolytic tough-pitch-grade copper
- 99.97% copper purity
- 101% conductivity
- 100% bunching
- 60% extra annealing for enhanced flexibility
- Class 5 conductors
- Suitable for residential, commercial and infrastructure building wiring applications
A Practical Choice Where Lower Smoke Matters
Anchor by Panasonic Fireguard FR-LSH combines high-purity copper, flexible Class 5 conductor construction and flame-retardant low-smoke halogen insulation. Its IS 694:2010 conformity, higher oxygen index and manufacturer-stated lower smoke emission make it a practical wiring option for suitable modern building installations.
Select the appropriate conductor size and colour according to your electrical circuit requirement.
| Specification | Details |
| Brand | Anchor by Panasonic |
| Series | Fireguard FR-LSH |
| Product Type | Flame Retardant Low Smoke Halogen Building Wire |
| Listing Length | 180 Metres |
| Insulation Type | FR-LSH |
| Conductor Material | Electrolytic Tough-Pitch-Grade Copper |
| Copper Purity | 99.97% |
| Conductivity | 101% |
| Conductor Class | Class 5 |
| Bunching | 100% |
| Annealing | 60% Extra Annealing for Enhanced Flexibility |
| Fire Performance | Higher Oxygen Index and Temperature Index |
| Smoke Performance | At Least 50% Less Smoke Than Comparable Wires, as Stated by Manufacturer |
| Standard | IS 694:2010 |
| Wire Size | Variant Dependent |
| Colour | Variant Dependent |
